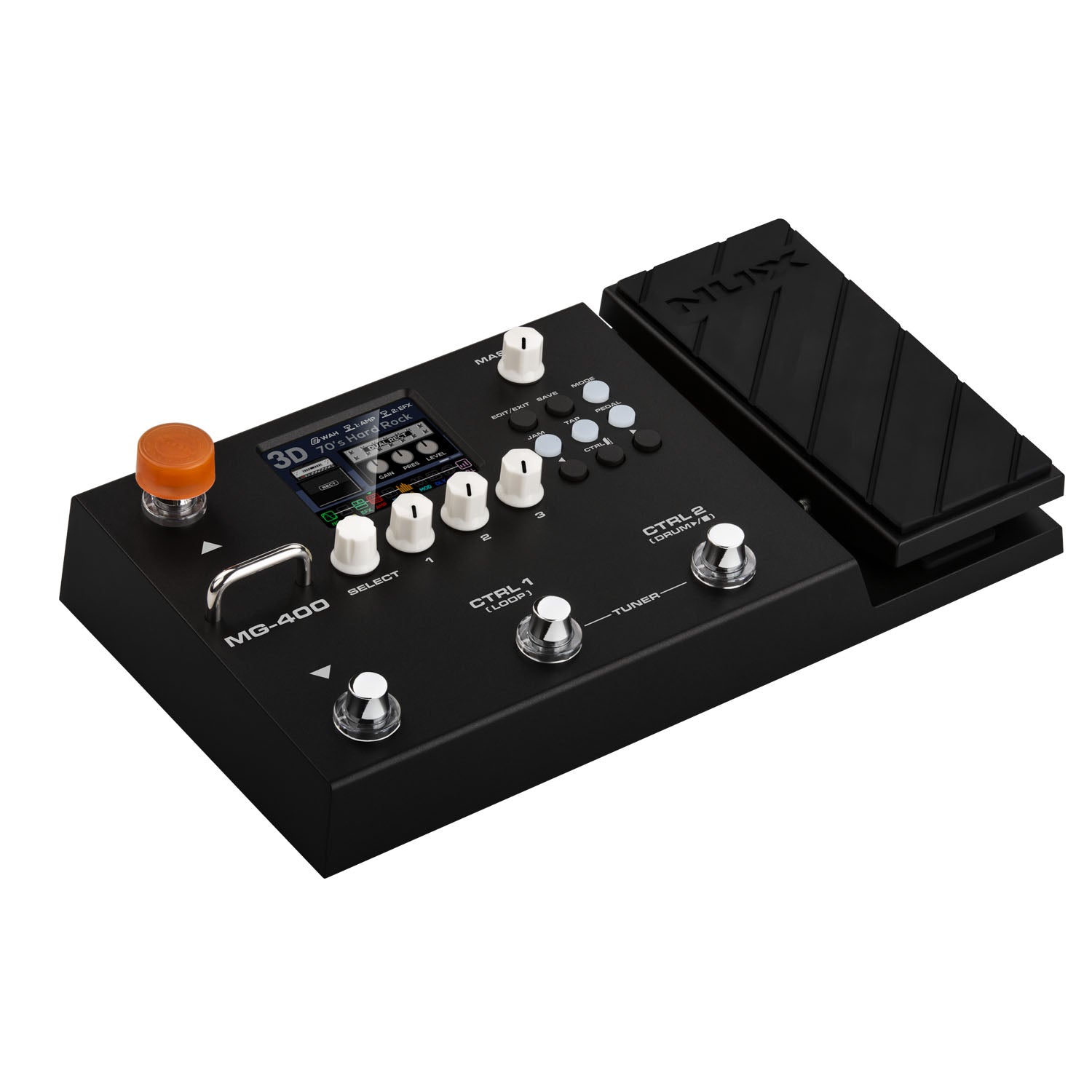

Pedal Guitar Nux MG400

BEST VALUE MODELER

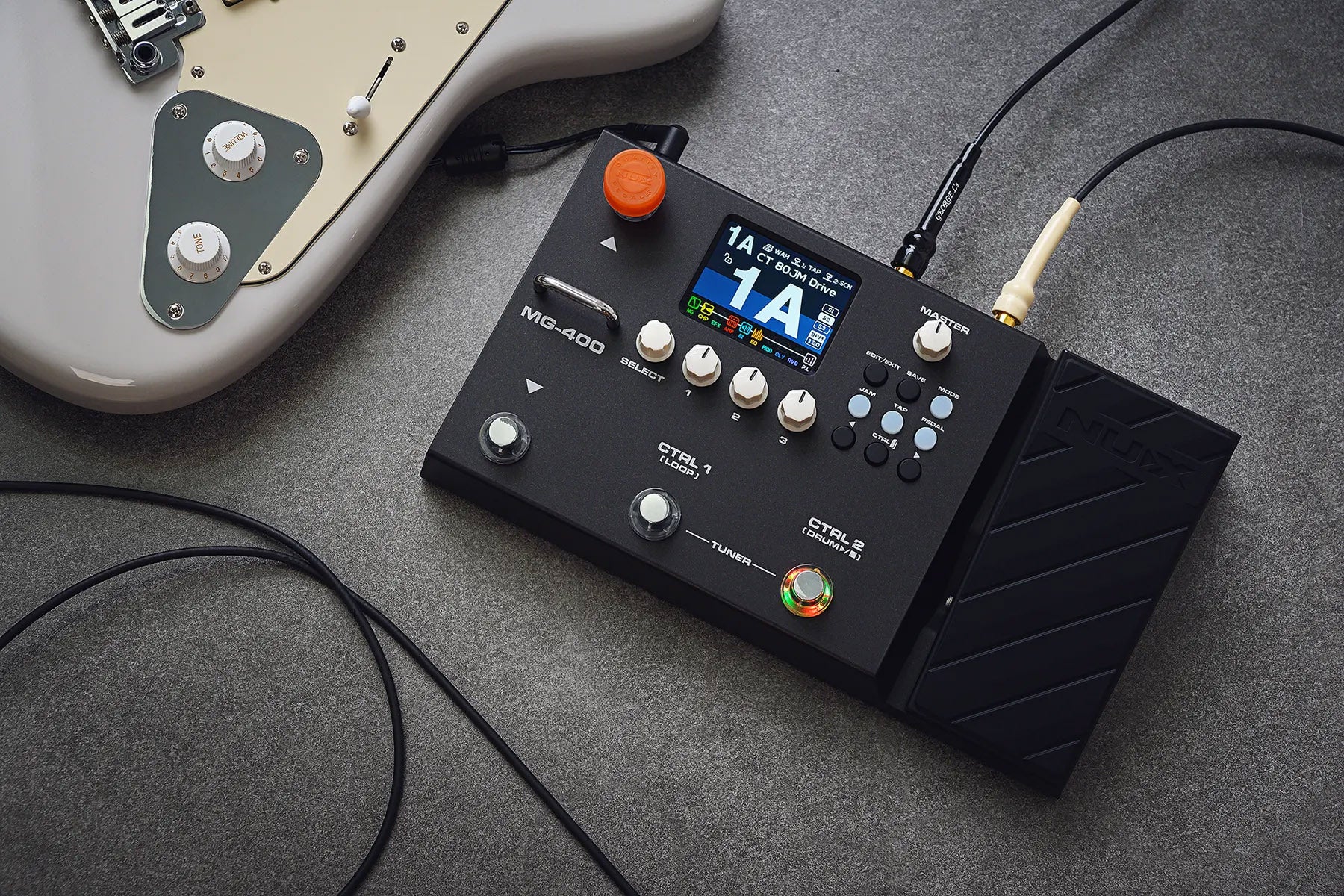

The NUX MG-400 is a value packed modeler akin to his little brother, the MG-300. MG-400 houses 2 powerful DSP chips for high-definition White-Box Amp Modeling algorithm (TS/AC-HD) and Core-Image post-effects. Since releasing the MG-300, people have been blown away by the sound and playability, not to mention the ease-of-use tone tweaking and intuitive interface. And now, the MG-400 builds upon the MG-300 feature set moveable signal blocks, 12 IR COLLECTION slots, flexible P.L block with MIN & MAX parameter setup, abundant SYSTEM MENU, and physical MASTER volume knob, MG-400 is now the best value modeler for the money.

2.8” 320*240 color LCD with intuitive UI.

NG, CMP, EFX, AMP, IR, EQ, MOD, DLY, RVB, P.L | 10 independent moveable signal blocks.

White-box Amp Modeling & Pre-efx algorithm offers realistic playability and analog-chaos response.

512 samples IR resolution and USER slot with each patch. (additional 12 IR COLLECTION slots)

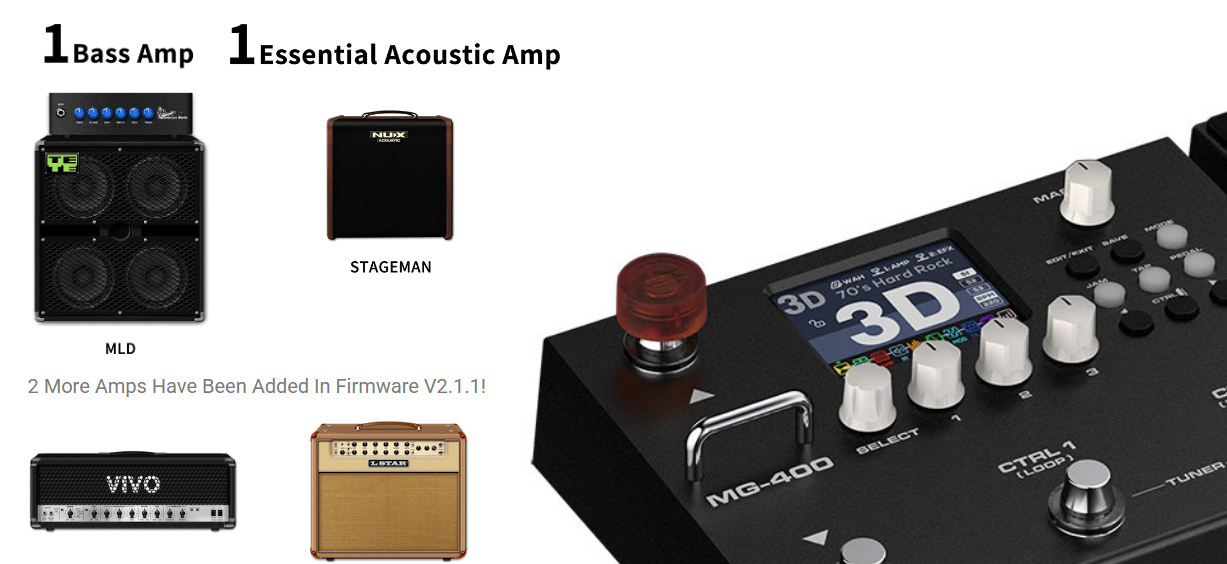

Electric guitar amp models, bass amp models, and acoustic simulation IRs with related acoustic amp models.

Input trim under SYSTEM MENU.

5 output modes with global 3 band EQ for quick tone tweaking. (Besides STUDIO DIRECT, others will disengage IR signal as default.)

PARA. FOLLOW function can track your effect tweaking habits.

USB recording interface, firmware update, QuickTone™ edit software.

[TSAC-HD] - WHITE-BOX AMP MODELING

Same Amp Modeling Algorithm as MG-300, for easy Tone Tweaking:

The White-box Amp Modeling & Pre-Efx algorithm offers realistic playability and analog-chaos response.

The concept of "Chaos makes the muse" perfectly applies to the analogue circuit. When you tweak the knob, it affects itself as well as other parameters. For a linear digital system, the parameter is independent. The white-box algorithm offers real-time feedback, increment-by-increment. NUX TS/AC-HD replicates the same playability most guitarists crave in a real tube amplifier.

IMPULSE RESPONSE

512 samples IR resolution and USER slot with each patch. (additional 12 IR COLLECTION slots)

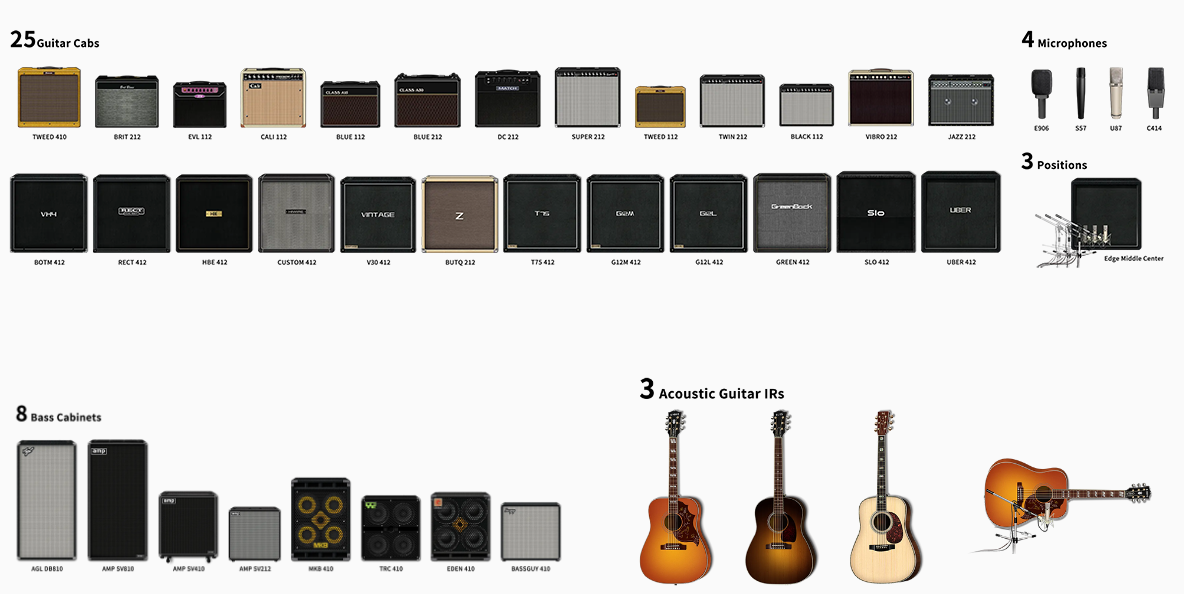

The MG-400 includes multiple impulse response of 512 samples each. You can load 3rd party IR files using our NUX QuickTone edit software (support up to 48kHz sample rate). The included 25 guitar cabinet IRs combine 4 classic microphones with 3 mic positions to allow beginners a quick and easy way to jump into the multi effects experience. Also included are 8 bass cabinet IRs and 3 acoustic guitar IRs, giving you the ability to play bass guitar on MG-400 or use electric guitar to simulate acoustic guitar sound with acoustic guitar IRs.

10 INDEPENDENT FLEXIBLE BLOCKS

NG, CMP, EFX, AMP, IR, EQ, MOD, DLY, RVB, P.L | 10 independent moveable signal blocks.

You can move signal blocks freely on the MG-400 and/or QuickTone editing software. Set the PATCH LEVEL block in front of AMP to swell the volume. Put DELAY block in front of gain stage to create grooving riffs. There are lots of tone creations with the flexible block routing.

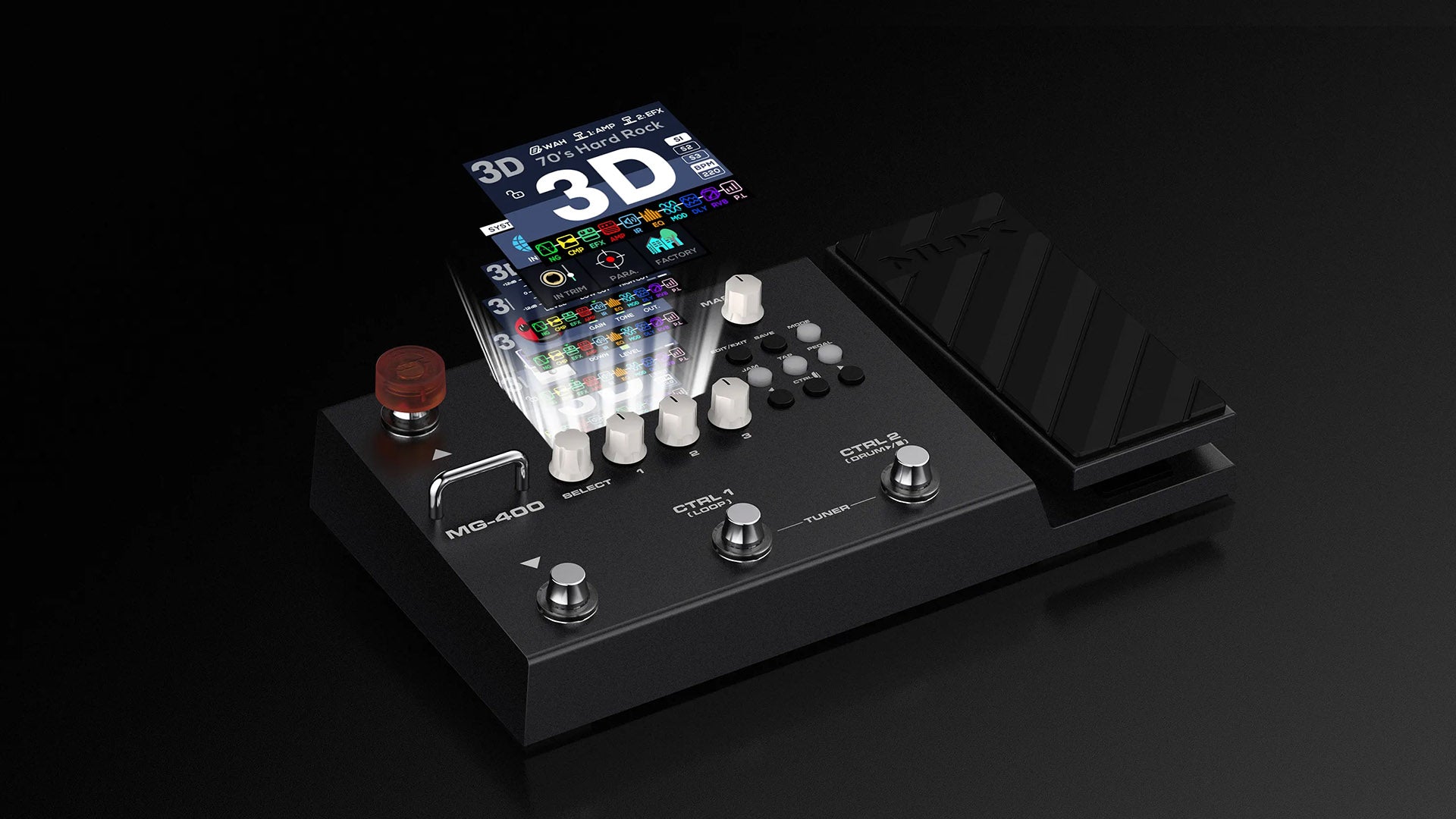

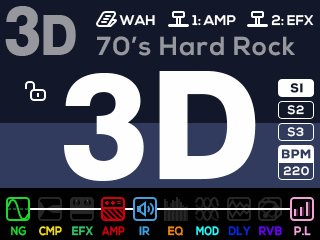

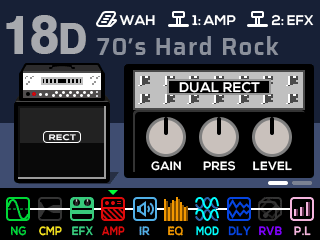

2.8” COLOR LCD

2.8” 320*240 color LCD with intuitive UI.

An intuitive user interface with a colorful LCD lets you get rid of reading manuals. Keep it Simple!

SCENE FUNCTIONALITY

Use SCENES to engage/disengage blocks with either CTRL footswitch.

You can assign CTRL1 or CTRL2 to trigger the SCENE Functionality. Each preset has 3 scenes, which are snapshots within a preset. This is a powerful function for live gigs. Each SCENE can engage/disengage signal blocks freely, and it retains the DELAY / REVERB trails when you disengage them with SCN CTRL.

Jam ( Drum & Looper )

The MG-400 supports NUX Phrase Loop Synchronization with Rhythm. You can play the rhythm then record your phrase loop. MG-400 will automatically beat match the phrase to fit the current rhythm BPM.

*Choose either STEREO / MONO looping. (Stereo is 30 seconds, mono is 60 seconds.)

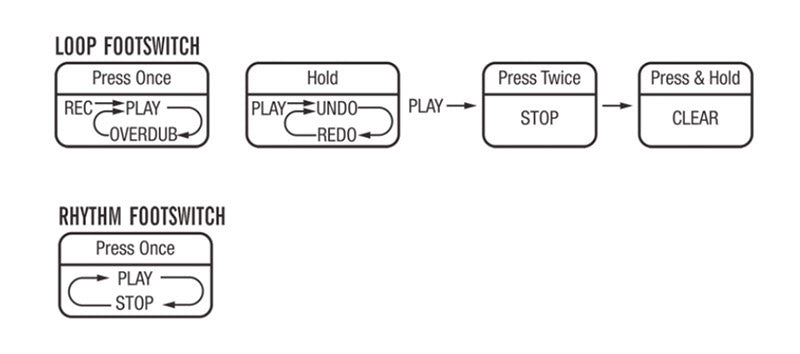

Two Recording Modes

*NR = Normal Recording works as regular loop function, while you press CTRL1(LOOP) footswitch, it starts to record the phrase loop.

*AR = Auto Recording will stand by while you press CTRL1(LOOP) footswitch, once you hit the strings, it will start to record your phrase loop.

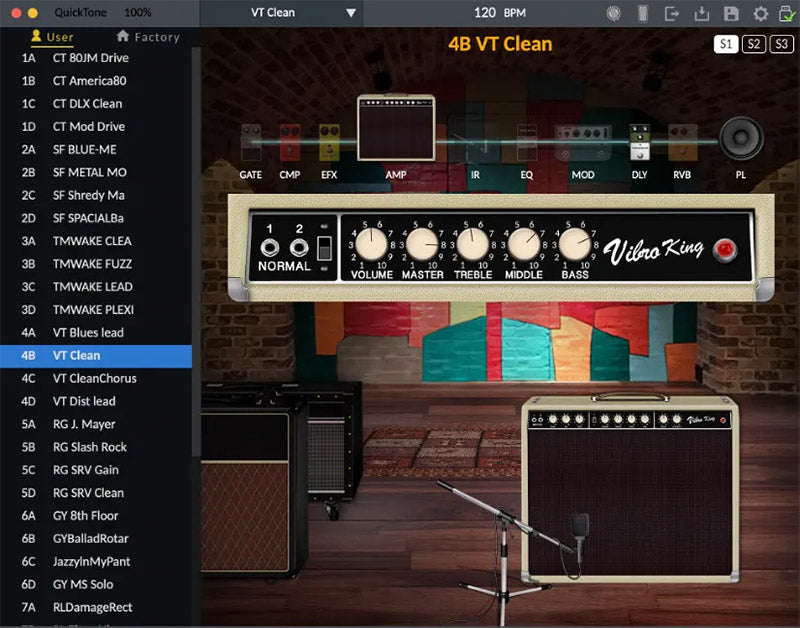

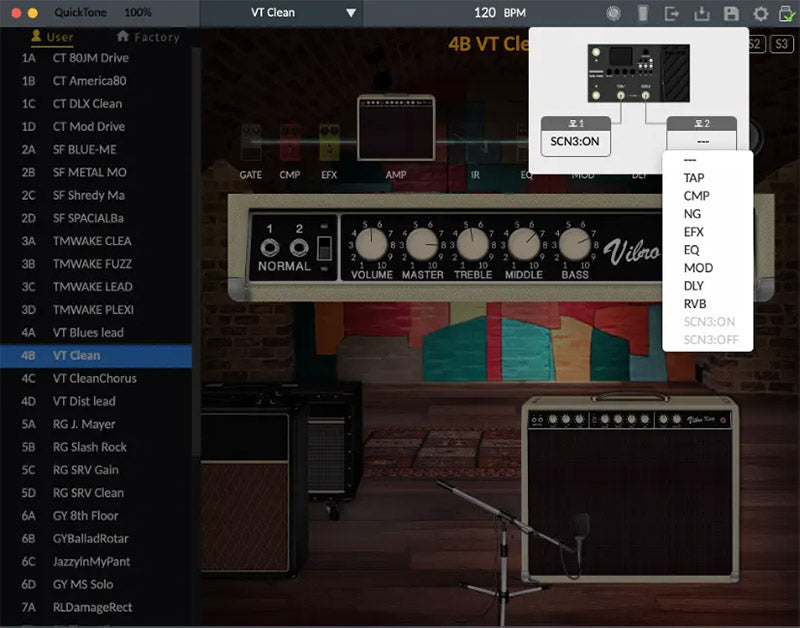

Quick Tone Editor Software

You can download the QuickTone™ editor from the MG-400 product page. An intuitive interface is provided for tweaking parameters, dragging block order, setup SCN, save patches, load patches, export patches, load IRs, set up USB routing and CTRL SETTING; all by simply using QuickTone™.

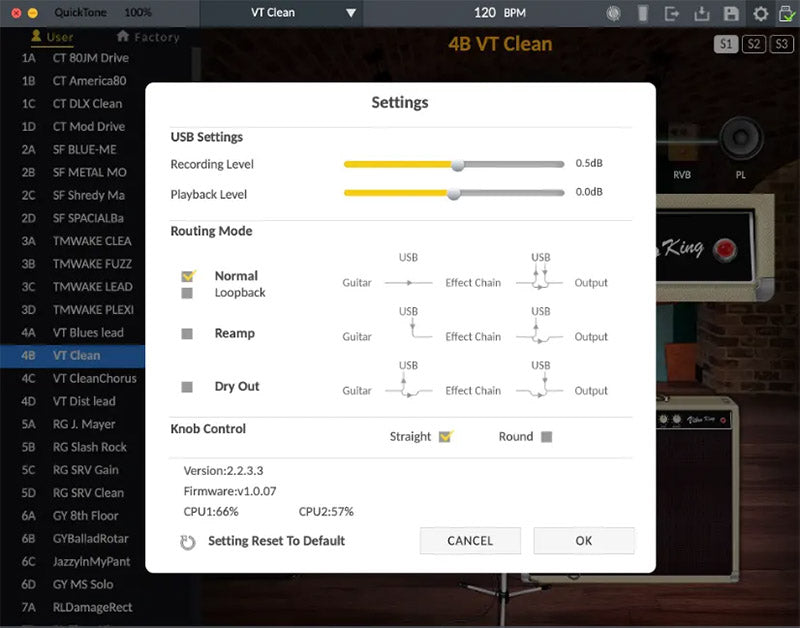

USB Audio Interface

For home studio and silent practice, the MG-400’s USB audio capabilities makes it the Swiss Army Knife of guitar audio interfaces. Connect it via USB to your PC, and you can record tracks, reamp, and even do livestreaming with the MG-400.

In Normal mode, you can choose Loopback to play the playbacks from PC when doing a live stream.

Re-amp: MG-400 offers Dry Out and Re-amp recording applications.
