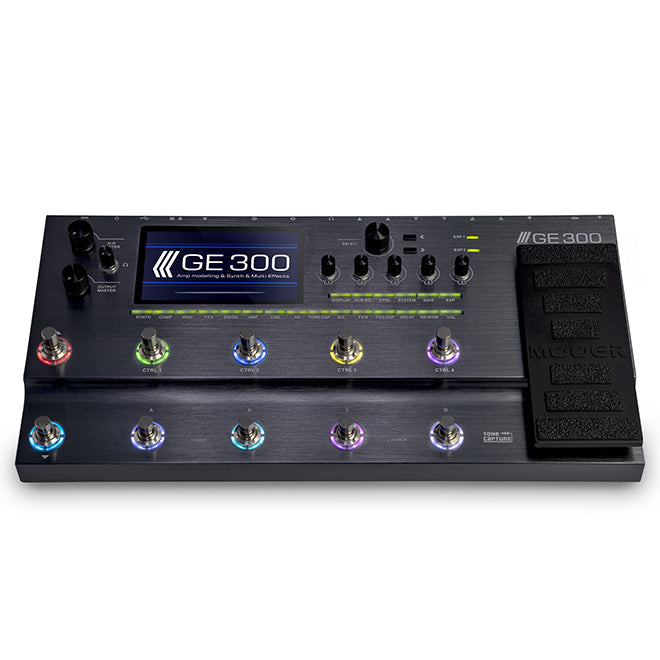

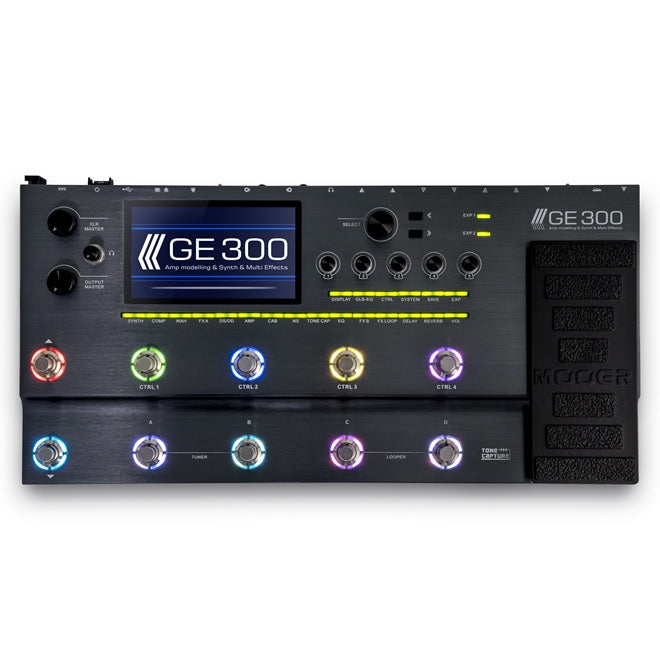

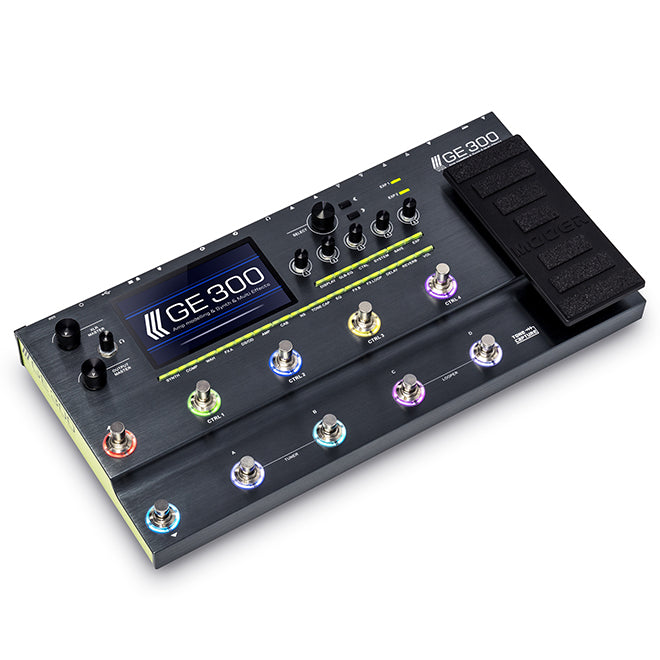

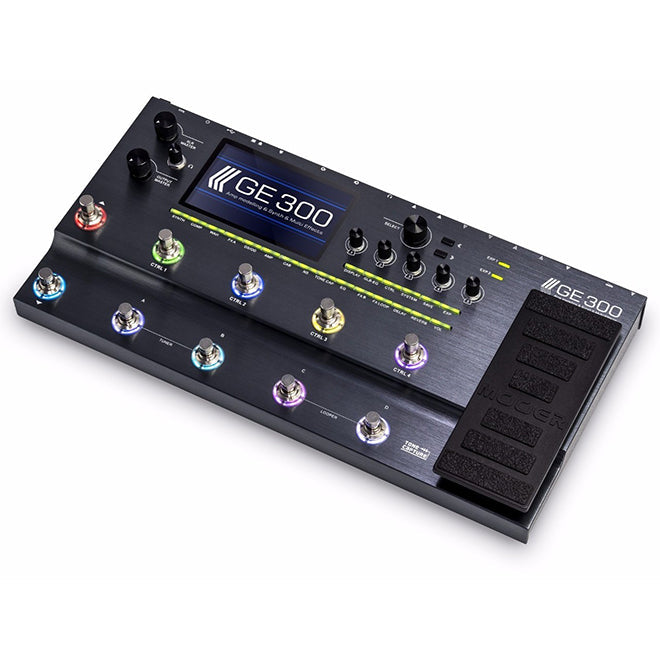

The GE300 from MOOER is the flagship multi-effect instrument processor. By combining the well-received Micro Preamp series, TONE CAPTURE instrument matching technology, tri-voice polyphonic synthesizer module, and a wide-range of guitar effects and tools, the Mooer GE300 embellishes every single motive for creation from your mind with nuanced details.
The Mooer GE300 contains dual-DSP processors delivering the fastidious detailed characterizes of every delay, reverb, modulation or amp model inside. Thanks to the intuitive and simple UI, controls, and connection ports, the Mooer GE300 is an all-in-one working station for musicians whether in a live situation, at home, or in the studio.
With the synth module, your instrument will be transformed into an electronic synthesizer without the need for special pickups or instrument modifications, allowing you to spark your creativity with more possibilities.
As you can see from the diagram, the SYNTH ENGINE has 3 independent voices with their own parameters for waveform, pitch, attack, level, filter and arpeggiator. The signal path from the instrument input is split and routed directly to the front of each synth voice so they remain completely parallel and independent from one another. The thru dry signal can also be mixed parallel to the entire synth effect block, so you can opt for synth only or mix it with your guitar signal.
TONE CAPTURE is an intelligent learning and comparison engine that can be used to create your very own digital models by sampling real-life equipment.
The Mooer GE300 is the only MOOER product that features three different TONE CAPTURE modes.
AMP & STOMP MODE can be used to sample your favorite stomp box or amplifier. This can then be applied to an existing amp or drive pedal model within a preset to transform it into your sample.
GUITAR MODE allows you to capture the EQ characteristics of your instrument. Have you ever found yourself searching for a single instrument that has all the different guitar sounds you need? Be it classic country twang, warm ballsy blue tones, the funkadelic “4-position”, tight thrashing djent, Piezo acoustic-electric - GUITAR MODE can sample any guitar, provided it has some form of pickup, and create a detailed digital guitar model using MOOER’s proprietary non-linear IR technology.
CAB MODE allows you to create your own Impulse Response models of speaker cabinets to use instead of using the CAB effect block already installed on the GE300.
Mooer GE300 has 108 digital amp models that utilize MOOER’s non-linear amp modeling technology. Each model has been designed based on samples taken directly from real-life tube amplifiers. It is not only the accurate recurrence of the original amps’ tone but also the dynamics and feel of a real tube amp.
43 IR based factory speaker cab models with 20 user slots to load in your favorite 3rd party IR files. (Up to 2048 sample pts)
164 high-quality effects that cover all the bases from your favorite stompboxes, plugins and studio rack units.
30 minute capacity loop station with undo/redo, direct dubbing, reverse + 1/2 time effects. Looper sessions can be stored and backed up for import /export of audio files. Recall that new song idea you had any time, or load in your favorite backing tracks to jam along with!
MIDI IN/MIDI OUT/THRU with easy mapping and external ctrl switching to control your other pedals and amps.
Direct, low latency USB audio lets Mooer GE300 double up as a digital audio interface and become a “one-stop-shop” solution for recording guitar. Apart from that, editor software on computer makes it an all in one working station. Firmware update via
USB available.
MAIN FEATURES
108 high-quality AMP models
43 IR based factory speaker cab models
Tri-voice polyphonic synthesizer module
TONE CAPTURE for sampling the tonal characteristics of guitar, amplifier, stomp box, and cabinet to create new digital preamp models, new impulse response files.
164 high-quality effects
Programmable FX loop with optional signal chain routing.
Stereo outputs (1/4’’ and XLR) with independent signal chain routing.
MIDI IN/MIDI OUT/THRU with easy mapping and external ctrl switching to control your other pedals and amps.
PROGRAMMABLE footswitches with user selectable LED colors and assignable functions, allowing complete user customization of control scheme.
Direct, low latency USB audio.
30 minutes loop station with undo/redo, direct dubbing, reverse + 1/2 speed effects. Looper sessions can be stored and backed up for import /export of audio files.
High-precision programable TUNER will make sure you’re in-tune at all times.

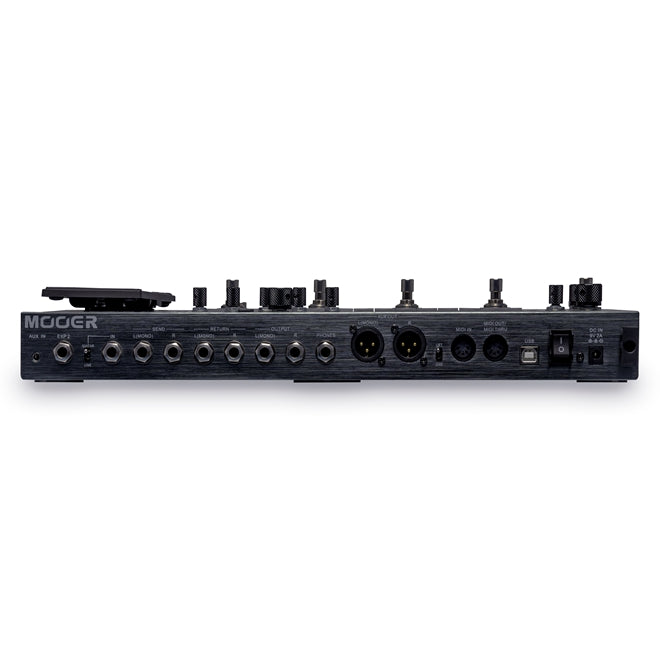

Connection.
AUX IN Connect external media devices for audio playback by 1/8” stereo jack.
INPUT Instrument input, ¼” mono jack with Guitar/Line level switch.
OUTPUT 2 x 1/4” mono jack.
XLR OUT 2 x Balanced XLR output with Ground lift switch.
USB Type-B USB. Connect to a computer to record direct digital audio. Interface with official MOOER software to edit and import/export presets. Support firmware update via USB.
MIDI IN For providing channel selection via MIDI commands from external devices.
MIDI OUT For controlling external devices with GE300 and creating effects presets for each preamp channel.
PHONES Dedicated headphone output. 1/4” stereo jack
SEND/RETURN Integrated stereo effects loop.
EXP2 External expression pedal input. This can also be used as an external switching output. 1/4” stereo jack
Thông số chi tiết Pedal Guitar Mooer GE300.
Algorithm
|
NO. of Effect Blocks |
15 |
NO. of Effect Types |
317 |
|
Patches |
256 (Preset) |
|
IR Loading |
20 slots |
|
IR Format |
.wav |
|
IR Sampling Rate |
44.1kHz(Full Sampling rate supported) |
|
IR Sampling Accuracy |
24 Bits |
|
IR Sampling Points |
512 / 1024 / 2018 Points |
|
Input |
Input |
|
Type |
1/4” unbalanced mono audio jack |
|
Impedance |
Guitar: 1Meg ohm Line: 10k ohm |
|
Maximum Input Level |
+12 dBu |
|
Return |
||
Type |
1/4” unbalanced mono audio jack X 2 |
|
Impedance |
1Meg ohm |
|
Maximum Input Level |
+12 dBu |
|
Aux In |
||
Type |
1/8” unbalanced Stereo audio jack |
|
Impedance |
100k ohm |
|
Maximum Input Level |
+12 dBu |
|
A/D Conversion |
||
Sampling Rate |
44.1 kHz |
|
Sampling Accuracy |
24bit |
|
Dynamic |
114 dB |
|
Frequency |
20Hz – 20kHz, +0 / -1 dB |
|
Output |
Output |
|
Type |
1/4” unbalanced mono audio jack X 2 |
|
Impedance |
470 ohm |
|
Maximum Output Level |
+12 dBu |
|
XLR Output |
||
Type |
XLR balanced output X 2 |
|
Impedance |
300 ohm |
|
Maximum Output Level |
+18 dBu |
|
Send |
||
Type |
1/4” unbalanced mono audio jack X 2 |
|
Impedance |
100 ohm |
|
Maximum Output Level |
+12 dBu |
|
Phones |
||
Type |
1/4” unbalanced Stereo audio jack |
|
Impedance |
16 ohm |
|
Maximum Output Level |
+12 dBu |
|
D/A Conversion |
||
Dynamic |
114 dB |
|
Frequency |
20Hz – 20kHz, +0 / -1 dB |
|
Others |
MIDI |
|
MIDI IN / OUT (THRU) |
5 Pin Female Connector |
|
USB |
||
Type |
USB Type B |
|
USB Audio |
USB 2.0, 2 IN 2 OUT, 44.1kHz, 24bit |
|
EXP2 External Expression Jack |
||
Type |
1/4” TRS jack |
|
Impedance |
10k – 100k ohm |
|
Power Supply |
DC 9V, 3A, |
|
Dimensions |
410mmX201mmX62mm |
|
Weight |
3.0 kg |
|
Accessories |
Power Supply, USB Cable, Quick Guide manual. |
