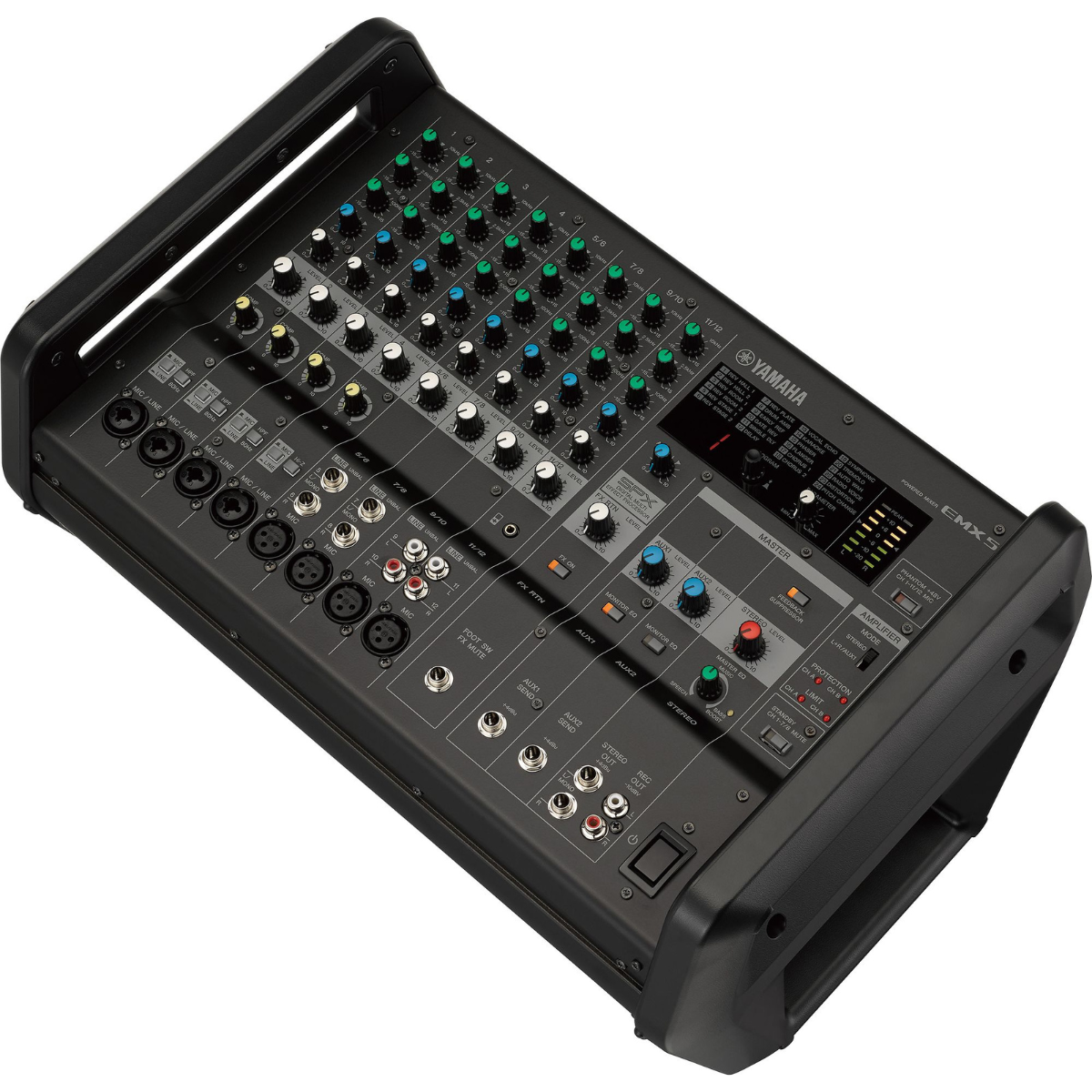

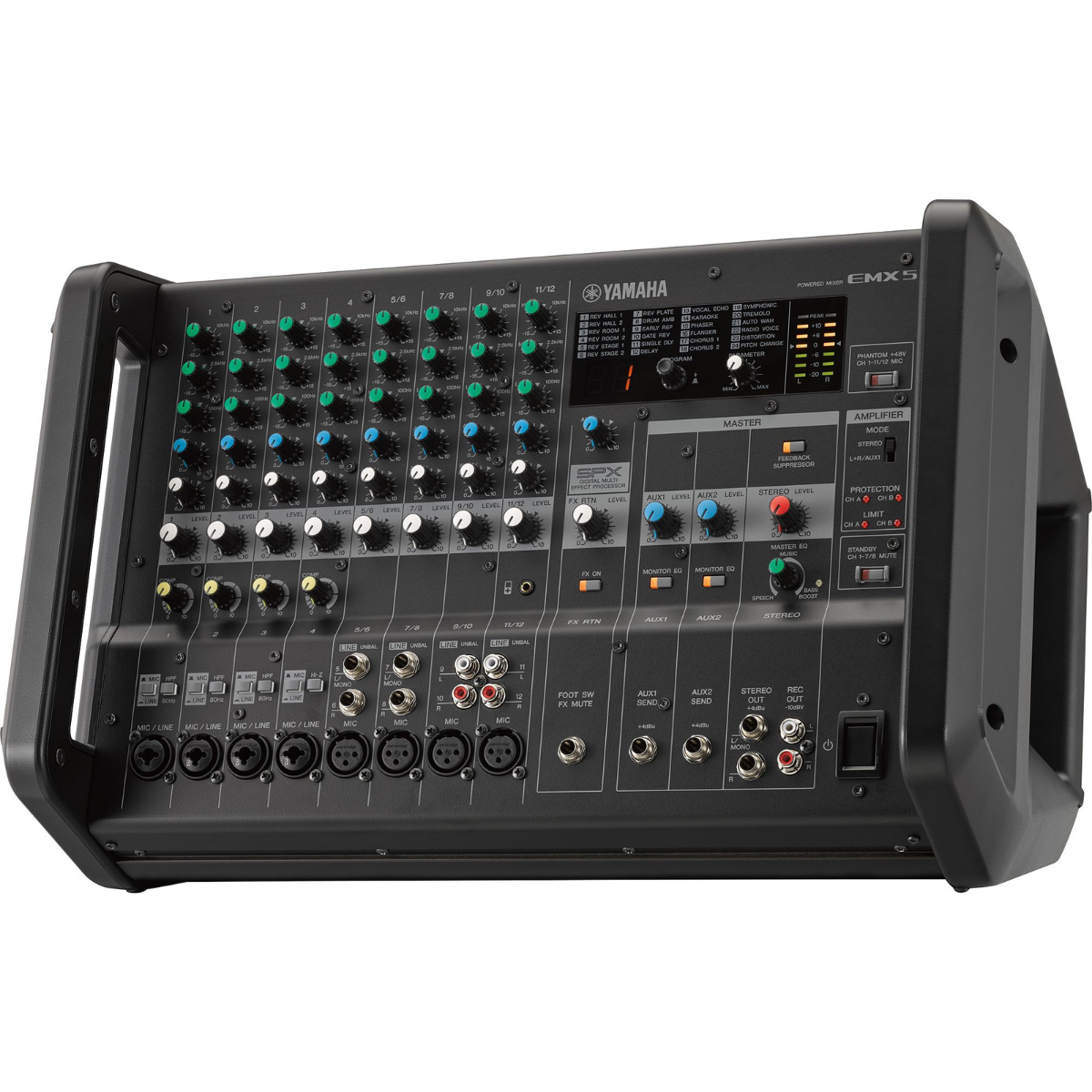

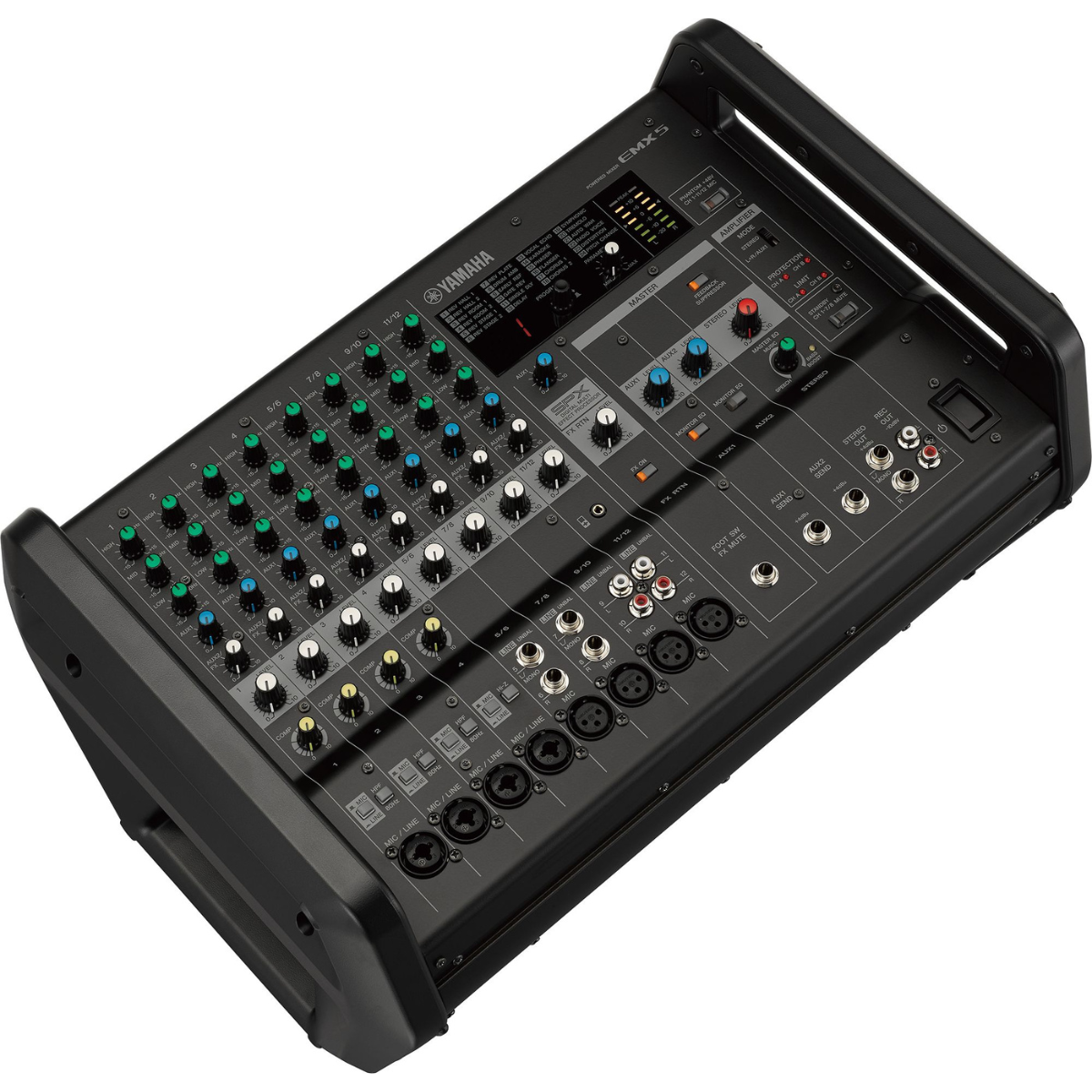

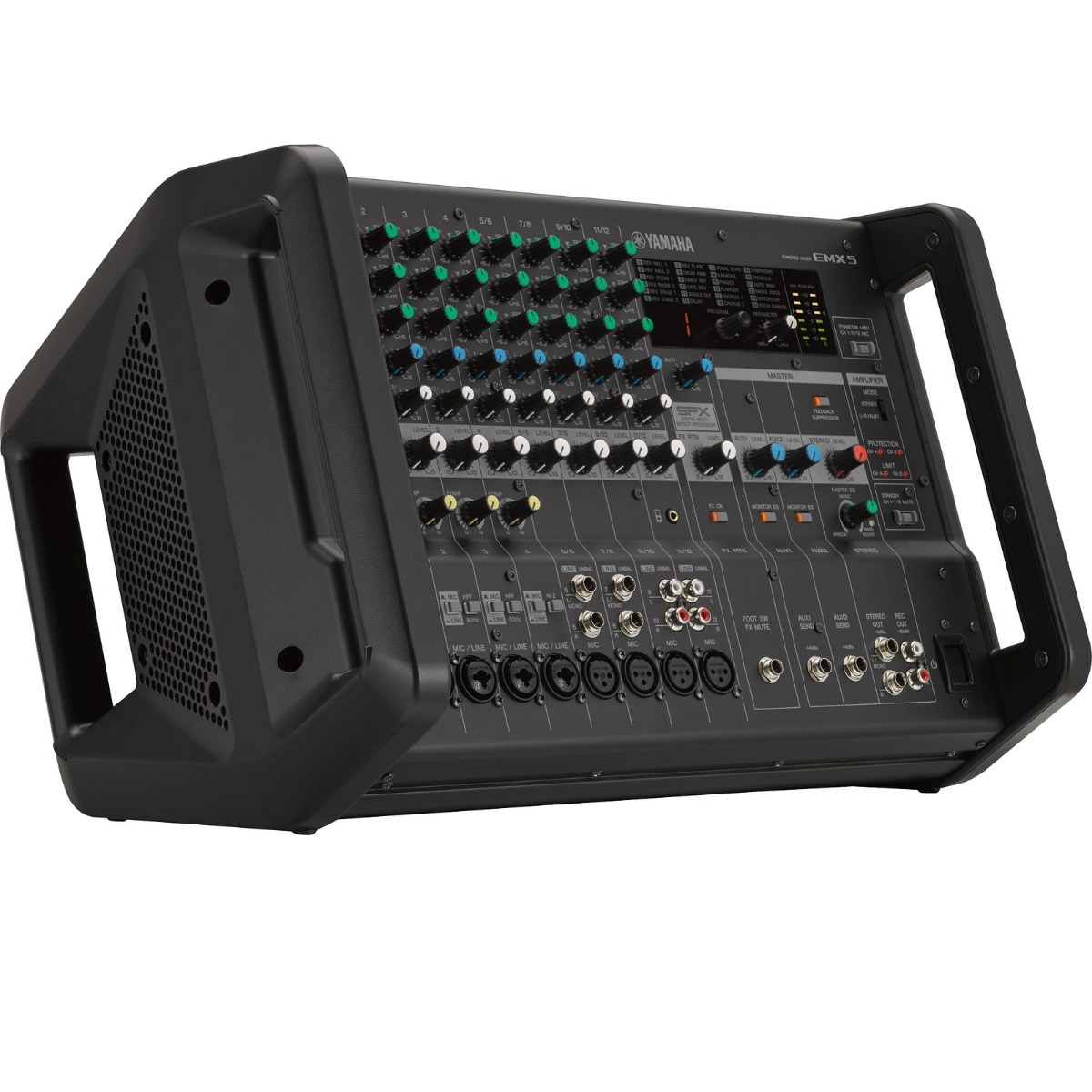

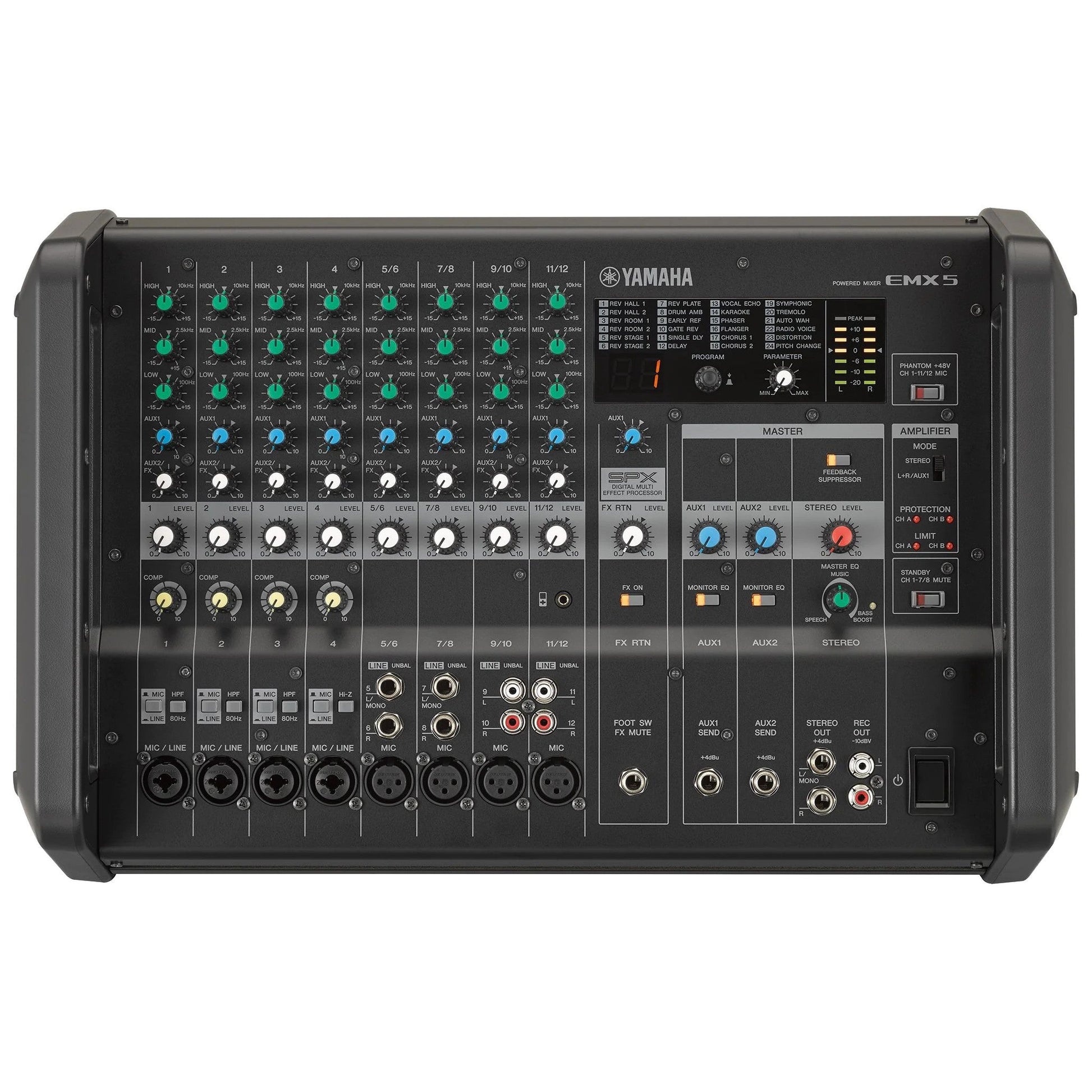

Mixer Yamaha EMX5
Hãy Nghiêm Túc Với Âm Nhạc Của Bạn. Box-type robust and portable powered mixer featuring high efficiency power amplifier of 630W and mixer with comprehensive effects, 1-Knob Master EQ™ and built-in feedback suppressor.2x 630W [4Ω], 2x 460W [8Ω] (1kHz THD+N less than 10% CEA2006) 2x 500W [4Ω], 2x 370W [8Ω]...
Hãng:
Yamaha
Loại sản phẩm:
Mixer
- 17.400.000₫
- 17.400.000₫
- Giá
- per
Nhanh tay! Chỉ còn 0
Subtotal:
17.400.000₫
Couldn't load pickup availability
Giao hàng sau 1h
Giao hàng sau 1h cho các đơn nội thành Hà Nội và TPHCM
Giao sau 2 - 3 ngày đối với các tỉnh thành khác
Trả hàng trong 7 ngày không lý do
Áp dụng cho đàn piano điện qua sử dụng. Các sản phẩm khác cho phép đổi mới trong tháng đầu nếu có lỗi.
Nhận hàng, thanh toán tại nhà (Ship COD)
Nhận hàng tại nhà, kiểm tra đúng như mô tả mới thanh toán cho người vận chuyển.
Trả góp qua Thẻ Tín Dụng hoặc CCCD
Hãy Nghiêm Túc Với Âm Nhạc Của Bạn.
Box-type robust and portable powered mixer featuring high efficiency power amplifier of 630W and mixer with comprehensive effects, 1-Knob Master EQ™ and built-in feedback suppressor.
2x 630W [4Ω], 2x 460W [8Ω] (1kHz THD+N less than 10% CEA2006)
2x 500W [4Ω], 2x 370W [8Ω] (1kHz THD+N less than 1% CEA2006)
Powerful & High Efficiency Class-D Amplifier
12 ngõ vào (8 mono và 4 stereo)
High-Z input (channel 4) to connect guitars or basses directly
1-Knob Master EQ™
Bộ triệt dội âm tích hợp
Comprehensive, professional 24 different effects
Metal chassis for extended operation and robustness
Large handles for extreme portability and protection
Universal power supply eliminates concern on power fluctuations
Optional rack-mount kit available
Thông số chi tiết Mixer Yamaha EMX5.
| Model | EMX5 | |
|---|---|---|
| I/O | Inputs | TOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE) |
| Phantom power | +48 V | |
| Outputs | SPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R] | |
| Điều khiển và Khác | FOOT SWITCH : Effect Mute on/off | |
| Bus | Stereo: 1, AUX: 2 (Including FX) | |
| Input Channel Function | PAD | 30 dB (CH1-4) |
| Hi-Z | Supported (CH4) | |
| HPF | 80 Hz, -12 dB/oct. (CH1–3) | |
| COMP | 1-knob COMP (CH1–4) | |
| EQ HIGH | 10 kHz +15 dB / -15 dB (Shelving) | |
| EQ MID | 2.5 kHz +15 dB / -15 dB (Peaking) | |
| EQ LOW | 100 Hz +15 dB / -15 dB (Shelving) | |
| On-board processors | DSP | SPX Algorithm 24 programs, Feedback suppressor, Master EQ, Monitor EQ |
| Level Meter | 2 × 7 points LED meter (-20, -10, -6, 0, +6, +10, PEAK) | |
| Ampli tích hợp | Công suất đầu ra tối đa @4ohms | 1kHz THD+N less than 10% (CEA2006) : 630 W + 630 W, 1kHz THD+N less than 1% (CEA2006) : 500 W + 500 W |
| Công suất đầu ra tối đa @8ohms | 1kHz THD+N less than 10% (CEA2006) : 460 W + 460 W, 1kHz THD+N less than 1% (CEA2006) : 370 W + 370 W | |
| Đáp tuyến tần số | Input to SPEAKERS : +1 dB/-3 dB (40 Hz to 20 kHz), Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz | |
| Total harmonic distortion | Input to SPEAKERS: 0.1% @ 10 W (40 Hz to 20 kHz), 0.05% @ 50 W (1 kHz) ; Input to STEREO OUT, AUX1 SEND, AUX2 SEND: 0.03% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF) | |
| Mức nhiễu & Ồn | Nhiễu đầu vào tương đương | -117 dBu (Noise is measured with A-weighting filter) |
| Nhiễu đầu ra thặng dư | Input to SPEAKERS : -66 dBu(40Hz to 20kHz, STEREO MASTER LEVEL: min); Input to STEREO OUT, AUX1 SEND, AUX2 SEND : -80dBu(20Hz to 20kHz, STEREO MASTER LEVEL: min) (Noise is measured with A-weighting filter) | |
| Crosstalk | -85 dB (1 kHz, Measured with 1 kHz band pass filter) | |
| Mạch bảo vệ | Bảo vệ tải | DC-fault |
| Bảo vệ Ampli | Over heat protection, Over current protection, Integral power protection | |
| Bảo vệ nguồn điện | Over heat protection, Over current protection | |
| Accessories | Owner’s Manual, Technical Specifications, AC power cord (2.5 m) | |
| Others | Operating Temperature : 0 to +40℃ | |
| Power requirements | AC 100-240V, 50Hz/60Hz | |
| Power consumption | 42 W (Idle) / 210 W (1/8 Power) | |
| Dimensions | W | 465 mm (18 5/16") |
| H | 308 mm (12 1/8") | |
| D | 325 mm (12 13/16") | |
| Net weight | 9.5 kg (20.9 lbs) | |
| Options | Foot switch: FC5, Rack-mount brackets: RK-EMX7 | |
Input Characteristics
| Input Jack | MIC/LINE | Hi-Z | Actual Load Impedance | For Use with Nominal | Input Level | Connector | |||
|---|---|---|---|---|---|---|---|---|---|
| Sensitivity *1 | Nominal Level (▼ Position) *2 | Max. Before Clip | |||||||
| CH 1–4 | XLR | MIC | - | 3 kΩ | 50–600 Ω Mics | -60 dBu (0.775 mV) | -43 dBu (5.48 mV) | -15 dBu (138 mV) | Combo jack *3 (Balanced) |
| LINE | - | -30 dBu (24.5 mV) | -13 dBu (173 mV) | +15 dBu (4.36 V) | |||||
| Phone | MIC | - | 8 kΩ | 600 Ω Lines | -50 dBu (2.45 mV) | -33 dBu (17.3 mV) | -5 dBu (436 mV) | ||
| LINE | - | -20 dBu (77.5 mV) | -3 dBu (548 mV) | +25 dBu (13.8 V) | |||||
| CH 4 (Hi-Z) | Phone | MIC | ON | 1 MΩ | 10 kΩ Lines | -50 dBu (2.45 mV) | -33 dBu (17.3 mV) | -5 dBu (436 mV) | Phone jack *4 (Unbalanced) |
| LINE | -20 dBu (77.5 mV) | -3 dBu (548 mV) | +20 dBu (7.75 V) | ||||||
| CH 5/6, 7/8 | XLR | - | - | 3 kΩ | 50–600 Ω Mics | -60 dBu (0.775 mV) | -43 dBu (5.48 mV) | -15 dBu (138 mV) | XLR-3-31 *5 (Balanced) |
| Phone | 10 kΩ | 600 Ω Lines | -20 dBu (77.5 mV) | -3 dBu (548 mV) | +25 dBu (13.8 V) | Phone jack *4 (Unbalanced) | |||
| CH 9/10, 11/12 | XLR | - | - | 3 kΩ | 50–600 Ω Mics | -60 dBu (0.775 mV) | -43 dBu (5.48 mV) | -15 dBu (138 mV) | XLR-3-31 *5 (Balanced) |
| Pin | 10 kΩ | 600 Ω Lines | -8 dBu (316 mV) | +10 dBu (2.45 V) | +25 dBu (13.8 V) | RCA pin (Unbalanced) | |||
| CH 11/12 | Mini jack | - | - | 10 kΩ | 600 Ω Lines | -8 dBu (316 mV) | +10 dBu (2.45 V) | +25 dBu (13.8 V) | Stereo mini jack *6 (Unbalanced) |
(0 dBu = 0.775 Vrms)
*1 Sensitivity is the lowest level that will produce an output of +4 dBu (1.228 V) or the nominal output level when the unit is set to maximum gain. (All level controls are at their maximum position.)
*2 Level controls setting : Channel level controls are at their t position. Master level controls are at their maximum position.
*3 1&Sleeve = GND, 2&Tip = HOT, 3&Ring = COLD
*4 Tip = Signal, Sleeve = GND
*5 1 = GND, 2 = HOT, 3 = COLD
*6 Tip = LEFT, Ring = RIGHT, Sleeve = GND
Output Characteristics
| Output Jack | Actual Source Impedance | For Use with Nominal | Output level | Connector | |
|---|---|---|---|---|---|
| Nominal | Max. Before Clip | ||||
| STEREO OUT L, R | 600 Ω | 10 kΩ Lines | +4 dBu (1.228 V) | +20 dBu (7.75 V) | Phone jack *1 (Impedance balanced) |
| AUX SEND 1, 2 | 600 Ω | 10 kΩ Lines | +4 dBu (1.228 V) | +20 dBu (7.75 V) | Phone jack *1 (Impedance balanced) |
| REC OUT L, R | 600 Ω | 10 kΩ Lines | -10 dBV (0.308 V) | +18 dBV (7.75 V) | RCA pin (Unbalanced) |
(0 dBu = 0.775 Vrms 0 dBV = 1.00 Vrms)
*1 Tip = HOT, Ring = COLD, Sleeve = GND
Speaker Output Characteristics
(0 dBu = 0.775 Vrms)
*1 1+ = Positive, 1- = Negative
*2 Tip = Positive, Sleeve = Negative
